.drag_drop

class: DragDropOptions

class DragDropOptions(**kwargs)[source]

The draggable-points module allows points to be moved around or modified in the chart.

In addition to the options mentioned under the dragDrop API structure, the module fires three (JavaScript) events:

  • point.dragStart

  • point.drag

  • point.drop

Class Inheritance
Inheritance diagram of DragDropOptions

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:

  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:

  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:

  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:

  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

to_dict() → dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') → str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:

  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:

  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) → dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:

  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:

  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property drag_handle: DragHandle | None

Options for the drag handles available in column series.

Return type:

DragHandle or None

property drag_max_x: int | float | Decimal | None

The maximum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_max_y: int | float | Decimal | None

The maximum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_x: int | float | Decimal | None

The minimum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_y: int | float | Decimal | None

The minimum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_precision_x: int | float | Decimal | None

The X precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_precision_y: int | float | Decimal | None

The Y precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_sensitivity: int | float | Decimal | None

The number of pixels to drag the pointer before it counts as a drag operation. Defaults to 2.

Note

This prevents drag/drop to fire when just clicking or selecting points.

Return type:

numeric or None

property draggable_x: bool | None

If True, enables dragging along the X dimension. Defaults to None, which is equivalent to False.

Return type:

bool or None

property draggable_y: bool | None

If True, enables dragging along the Y dimension. Defaults to None, which is equivalent to False.

Warning

This is not supported for TreeGrid axes (the default axis type in Gantt charts).

Return type:

bool or None

property group_by: str | None

Group the points by a property. Points with the same property value will be grouped together when moving. Defaults to None.

Return type:

str or None

property guide_box: GuideBox | None

Style options for the guide box. The guide box has one state by default, the default state.

Return type:

GuideBox or None

property live_redraw: bool | None

If True, update points as they are dragged. If False, a guide box is drawn to illustrate the new point size. Defaults to None, which behaves as True.

Return type:

bool or None.

class: HighLowDragDropOptions

class HighLowDragDropOptions(**kwargs)[source]

The draggable-points module allows points to be moved around or modified in the chart.

Class Inheritance
Inheritance diagram of HighLowDragDropOptions

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:

  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:

  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:

  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:

  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

to_dict() → dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') → str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:

  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:

  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) → dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:

  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:

  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property drag_handle: DragHandle | None

Options for the drag handles available in column series.

Return type:

DragHandle or None

property drag_max_x: int | float | Decimal | None

The maximum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_max_y: int | float | Decimal | None

The maximum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_x: int | float | Decimal | None

The minimum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_y: int | float | Decimal | None

The minimum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_precision_x: int | float | Decimal | None

The X precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_precision_y: int | float | Decimal | None

The Y precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_sensitivity: int | float | Decimal | None

The number of pixels to drag the pointer before it counts as a drag operation. Defaults to 2.

Note

This prevents drag/drop to fire when just clicking or selecting points.

Return type:

numeric or None

property draggable_high: bool | None

If True, enables high value to be dragged individually. Defaults to None, which is equivalent to True.

Return type:

bool or None

property draggable_low: bool | None

If True, enables the low value to be dragged individually. Defaults to None, which is equivalent to True.

Return type:

bool or None

property draggable_x: bool | None

If True, enables dragging along the X dimension. Defaults to None, which is equivalent to False.

Return type:

bool or None

property draggable_y: bool | None

If True, enables dragging along the Y dimension. Defaults to None, which is equivalent to False.

Warning

This is not supported for TreeGrid axes (the default axis type in Gantt charts).

Return type:

bool or None

property group_by: str | None

Group the points by a property. Points with the same property value will be grouped together when moving. Defaults to None.

Return type:

str or None

property guide_box: GuideBox | None

Style options for the guide box. The guide box has one state by default, the default state.

Return type:

GuideBox or None

property live_redraw: bool | None

If True, update points as they are dragged. If False, a guide box is drawn to illustrate the new point size. Defaults to None, which behaves as True.

Return type:

bool or None.

class: BoxPlotDragDropOptions

class BoxPlotDragDropOptions(**kwargs)[source]

The draggable-points module allows points to be moved around or modified in the chart.

Class Inheritance
Inheritance diagram of BoxPlotDragDropOptions

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:

  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:

  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:

  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:

  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

to_dict() → dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') → str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:

  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:

  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) → dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:

  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:

  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property drag_handle: DragHandle | None

Options for the drag handles available in column series.

Return type:

DragHandle or None

property drag_max_x: int | float | Decimal | None

The maximum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_max_y: int | float | Decimal | None

The maximum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_x: int | float | Decimal | None

The minimum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_y: int | float | Decimal | None

The minimum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_precision_x: int | float | Decimal | None

The X precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_precision_y: int | float | Decimal | None

The Y precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_sensitivity: int | float | Decimal | None

The number of pixels to drag the pointer before it counts as a drag operation. Defaults to 2.

Note

This prevents drag/drop to fire when just clicking or selecting points.

Return type:

numeric or None

property draggable_high: bool | None

If True, enables high value to be dragged individually. Defaults to None, which is equivalent to True.

Return type:

bool or None

property draggable_low: bool | None

If True, enables the low value to be dragged individually. Defaults to None, which is equivalent to True.

Return type:

bool or None

property draggable_q1: bool | None

If True, enables the Q1 value to be dragged individually. Defaults to None, which is equivalent to True.

Return type:

bool or None

property draggable_q3: bool | None

If True, enables the Q3 value to be dragged individually. Defaults to None, which is equivalent to True.

Return type:

bool or None

property draggable_x: bool | None

If True, enables dragging along the X dimension. Defaults to None, which is equivalent to False.

Return type:

bool or None

property draggable_y: bool | None

If True, enables dragging along the Y dimension. Defaults to None, which is equivalent to False.

Warning

This is not supported for TreeGrid axes (the default axis type in Gantt charts).

Return type:

bool or None

property group_by: str | None

Group the points by a property. Points with the same property value will be grouped together when moving. Defaults to None.

Return type:

str or None

property guide_box: GuideBox | None

Style options for the guide box. The guide box has one state by default, the default state.

Return type:

GuideBox or None

property live_redraw: bool | None

If True, update points as they are dragged. If False, a guide box is drawn to illustrate the new point size. Defaults to None, which behaves as True.

Return type:

bool or None.

class: BulletDragDropOptions

class BulletDragDropOptions(**kwargs)[source]

The draggable-points module allows points to be moved around or modified in the chart.

Class Inheritance
Inheritance diagram of BulletDragDropOptions

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:

  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:

  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:

  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:

  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

to_dict() → dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') → str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:

  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:

  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) → dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:

  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:

  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property drag_handle: DragHandle | None

Options for the drag handles available in column series.

Return type:

DragHandle or None

property drag_max_x: int | float | Decimal | None

The maximum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_max_y: int | float | Decimal | None

The maximum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_x: int | float | Decimal | None

The minimum X value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_min_y: int | float | Decimal | None

The minimum Y value the points can be moved to. Defaults to None.

Return type:

numeric or None

property drag_precision_x: int | float | Decimal | None

The X precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_precision_y: int | float | Decimal | None

The Y precision value to drag to for this series. Defaults to None, which is equivalent to disabling for most axes except for category axes where the default is 1.

Set to 0 to disable for all axes.

Return type:

numeric or None

property drag_sensitivity: int | float | Decimal | None

The number of pixels to drag the pointer before it counts as a drag operation. Defaults to 2.

Note

This prevents drag/drop to fire when just clicking or selecting points.

Return type:

numeric or None

property draggable_target: bool | None

If True, enables the target to be dragged individually. Defaults to None, which is equivalent to True.

Return type:

bool or None

property draggable_x: bool | None

If True, enables dragging along the X dimension. Defaults to None, which is equivalent to False.

Return type:

bool or None

property draggable_y: bool | None

If True, enables dragging along the Y dimension. Defaults to None, which is equivalent to False.

Warning

This is not supported for TreeGrid axes (the default axis type in Gantt charts).

Return type:

bool or None

property group_by: str | None

Group the points by a property. Points with the same property value will be grouped together when moving. Defaults to None.

Return type:

str or None

property guide_box: GuideBox | None

Style options for the guide box. The guide box has one state by default, the default state.

Return type:

GuideBox or None

property live_redraw: bool | None

If True, update points as they are dragged. If False, a guide box is drawn to illustrate the new point size. Defaults to None, which behaves as True.

Return type:

bool or None.

class: GuideBox

class GuideBox(**kwargs)[source]

Style options for the guide box. The guide box has one state by default, the default state.

Class Inheritance

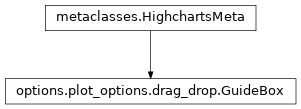

Inheritance diagram of GuideBox

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:

  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:

  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:

  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:

  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

to_dict() → dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') → str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:

  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:

  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) → dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:

  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:

  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property default: GuideBoxOptions | None

Style options for the guide box default state.

Return type:

GuideBoxOptions or None

class: GuideBoxOptions

class GuideBoxOptions(**kwargs)[source]

Style options for the guide box default state.

Class Inheritance

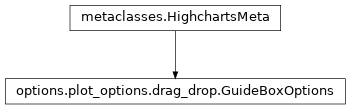

Inheritance diagram of GuideBoxOptions

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:

  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:

  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:

  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:

  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

to_dict() → dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') → str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:

  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:

  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) → dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:

  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:

  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property class_name: str | None

CSS class name of the guide box in this state. Defaults to 'highcharts-drag-box-default'.

Return type:

str or None

property color: str | Gradient | Pattern | None

Guide box fill color. Defaults to 'rgba(0, 0, 0, 0.1)'.

Return type:

str, Gradient, Pattern`, or None

property cursor: str | None

The style of cursor to use when the user’s mouse hovers over the data series. Defaults to 'move'.

Acceptable values are:

  • 'alias'

  • 'all-scroll'

  • 'auto'

  • 'cell'

  • 'col-resize'

  • 'context-menu'

  • 'copy'

  • 'crosshair'

  • 'default'

  • 'e-resize'

  • 'ew-resize'

  • 'grab'

  • 'grabbing'

  • 'help'

  • 'move'

  • 'n-resize'

  • 'ne-resize'

  • 'nesw-resize'

  • 'no-drop'

  • 'none'

  • 'not-allowed'

  • 'ns-resize'

  • 'nw-resize'

  • 'nwse-resize'

  • 'pointer'

  • 'progress'

  • 'row-resize'

  • 's-resize'

  • 'se-resize'

  • 'sw-resize'

  • 'text'

  • 'vertical-text'

  • 'w-resize'

  • 'wait'

  • 'zoom-in'

  • 'zoom-out'

Return type:

str or None

property line_color: str | Gradient | Pattern | None

Color of the border around the guide box. Defaults to '#888'.

Return type:

None, Gradient, Pattern, or str

property line_width: int | float | Decimal | None

Pixel width of the line around the guide box. Defaults to 1.

Return type:

numeric or None

property z_index: int | float | Decimal | None

Guide box zIndex position. Defaults to 900.

Return type:

numeric or None

class: DragHandle

class DragHandle(**kwargs)[source]

Options for the drag handles available in column series.

Class Inheritance

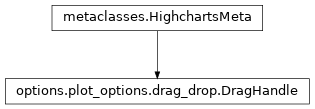

Inheritance diagram of DragHandle

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:

  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:

  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:

  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:

  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

to_dict() → dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') → str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:

  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:

  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) → dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:

  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:

  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property class_name: str | None

CSS class name of the guide box in this state. Defaults to 'highcharts-drag-handle'.

Return type:

str or None

property color: str | Gradient | Pattern | None

The fill color of the drag handles. Defaults to '#fff'.

Return type:

str, Gradient, Pattern`, or None

property cursor: str | None

The mouse cursor to use for the drag handles. By default (when None), this intelligently switches between 'ew-resize' and 'ns-resize' depending on the direction the point is being dragged.

Acceptable values are:

  • 'alias'

  • 'all-scroll'

  • 'auto'

  • 'cell'

  • 'col-resize'

  • 'context-menu'

  • 'copy'

  • 'crosshair'

  • 'default'

  • 'e-resize'

  • 'ew-resize'

  • 'grab'

  • 'grabbing'

  • 'help'

  • 'move'

  • 'n-resize'

  • 'ne-resize'

  • 'nesw-resize'

  • 'no-drop'

  • 'none'

  • 'not-allowed'

  • 'ns-resize'

  • 'nw-resize'

  • 'nwse-resize'

  • 'pointer'

  • 'progress'

  • 'row-resize'

  • 's-resize'

  • 'se-resize'

  • 'sw-resize'

  • 'text'

  • 'vertical-text'

  • 'w-resize'

  • 'wait'

  • 'zoom-in'

  • 'zoom-out'

Return type:

str or None

property line_color: str | Gradient | Pattern | None

The line color of the drag handles. Defaults to 'rgba(0, 0, 0, 0.6)'.

Return type:

None, Gradient, Pattern, or str

property line_width: int | float | Decimal | None

The line width for the drag handles. Defaults to 1.

Return type:

numeric or None

property path_formatter: CallbackFunction | None

JavaScript function to define the SVG path to use for the drag handles. Takes the point as a (JavaScript) argument. Should return an SVG path in array format. The SVG path is automatically positioned on the point.

Return type:

CallbackFunction or None

property z_index: int | float | Decimal | None

Drag handles’ zIndex position. Defaults to 901.

Return type:

numeric or None
